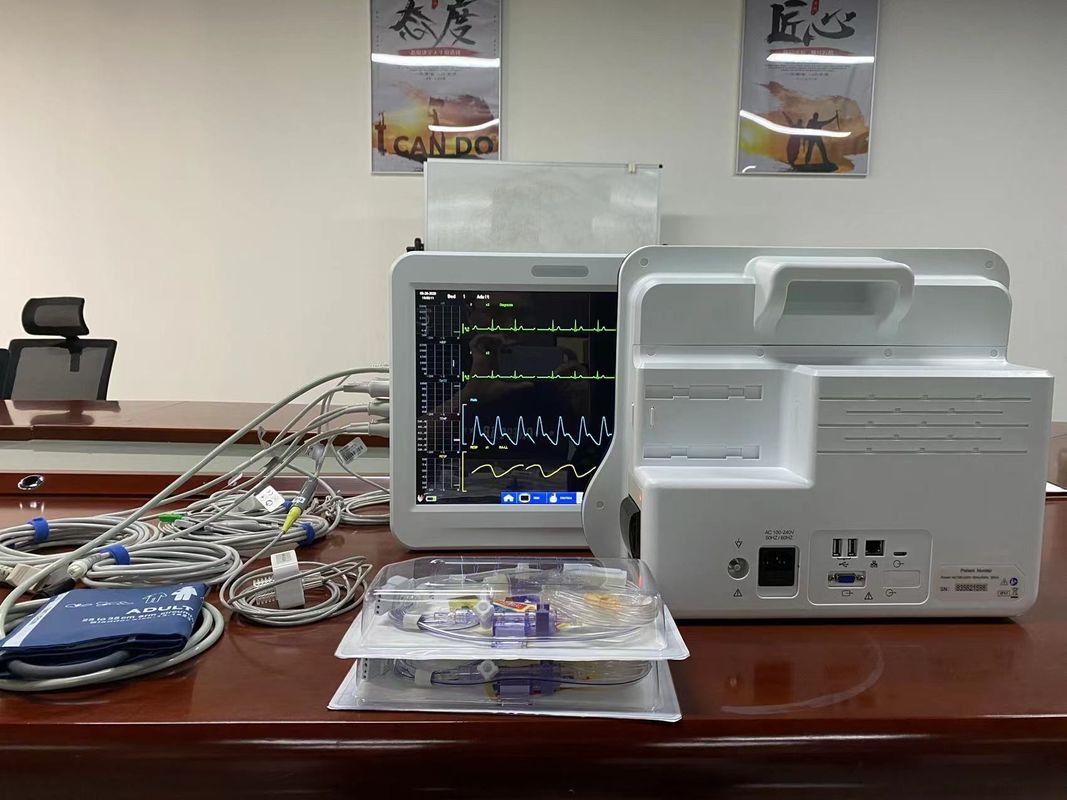

Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2

Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2
Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2
Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2 Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2

Large Image :  Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2

Product Details:
Place of Origin: P.R.China
Brand Name: Hung-Kee
Certification: IEC
Model Number: HighAcuity T15
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Carton Size: 490.0 x 395.00 x 335.00mm (1 pcs/CTN), 0.065CBM G.W.: 6.80Kgs, N.W.: 5.00Kgs
Delivery Time: 5 to 30 days
Payment Terms: T/T
Supply Ability: 2000 units per month

Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2

Description
Monitoring Parameters: 3/5 Leads ECG, NIBP, SPO2, 2Temp, PR/HR Optional Parameter 1: EtCO2, Masimo SPo2, C.O., 2IBP, Suntech BP
Optional Parameters 2: AG, Printer, Center Monitoring System, IoC, Touch OEM/ODM: Accepted
Function: Monitoring ECG, BP, SPO2, Temp Product Name: Cardiac Monitor Machine
Highlight:

Modular Vitals Machine Hospital

,

Portable Vitals Machine Hospital

,

SPO2 Portable Vitals Machine

ICU cardiac monitor Portable patient monitor neonate patient monitor multi parameter patient monitor modular monitor



15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15





ICU cardiac monitor Quick Details:



This ICU cardiac Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR.



1. 15 inch TFT LCD screen, 6 standard parameters

2. 32-levels sound volume adjustment

3. 10-levels brightness adjustment

4. Maximum 168 hours graphic and tabular trends of all parameters

5. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG



Hung-Kee Patient monitor Brochure 2022.01.pdf



Cardiac Patient Monitor Technical details:



Table EtCO2 Specification





Transducer Type Mainstream EtCO2 Sensor
Principle of Operation

Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no

moving parts.

CO2 Measurement Range 0% to 20% (0 to 150mmHg)
CO2 Resolution

0.1 mm Hg 0 to 49 mm Hg

0.2 mm Hg 50 to 150 mm Hg

CO2 Accuracy ±2 mm Hg @ < 5.0% CO2 (at BTPS)
< 10% of reading @ > 5.0%CO2(at BTPS)
Warmup Time 10 seconds




( for more detailed technical data please refer to above PDF brochure)



ICU cardiac monitor Description:



The HighAcuity T15 ICU cardiac monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments. This cardiac patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. The HighAcuity T15 paired with the multi-gas module, manually identifies and measures the inspired and expired values of CO2, N2O and 5 anesthetic agents providing a compact, yet powerful OR monitoring solution.



1. Thinner and lighter in design, convenient and portable for users

2. Real-time S-T segment analysis, pacemaker detection
3. Various interfaces: standard screen, trend screen, oxy CRG screen, big front screen.



Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2 0Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2 1Modular Portable Vitals Machine Hospital For Monitoring ECG BP SPO2 2




ICU cardiac monitor Standard Accessories:



5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord



ICU cardiac monitor Optional Accessories:



Aluminum trolley, wall mount stand





FAQ for ICU cardiac monitor:



1.Q: How long is the warranty time?
A: 24 Months


2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.



3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.


4.Q: Do you work on OEM and SKD project?

A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.


5.Q: Where is your company located?

A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)



6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.



7. Q: How to proceed an order for portable patient monitor or other medical equipment?

A: 1st let us know your requirements or application.

2nd We quote according to your requirements or our suggestions.

3rd customer arrange payment for formal order.

4th We arrange the production.



8.Q:Are You A Manufacturer Or Trading Company?

A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
