Product Details:
|
| Standard: | 3/5 Leads ECG, NIBP, SPO2, 2Temp, PR/HR | Option 1: | EtCO2, Masimo SPo2, Suntech NIBP, C.O., 2IBP |
|---|---|---|---|
| Option 2: | AG, Printer, Touch, Center Monitoring System, IoC | Language: | English, Russia, French, Spanish, Turkey, Portuguese |
| Power Supply: | Input 100~240V, 50/60Hz | OEM/SKD: | Accepted |
| ODM: | Accepted | Dimension: | 340.0 X 370.00 X 165.00mm |
| Net Weight: | 5.0 KGs | Function: | Monitor, Diagnostic, Operation |
| Application: | Adult, Pediatric, Newborn, General Ward, ICU, CCU, OR | Screen Size: | 15 Inch TFT LCD |
| Product Name: | Cardiac Monitoring Machine | ||
| Highlight: | ICU Cardiac Monitor MultiLanguage,Newborn ICU Cardiac Monitor,Diagnostic Portable ICU Monitor |
||
ICU cardiac monitor Multi parameter patient monitor portable patient monitor neonate patient monitor

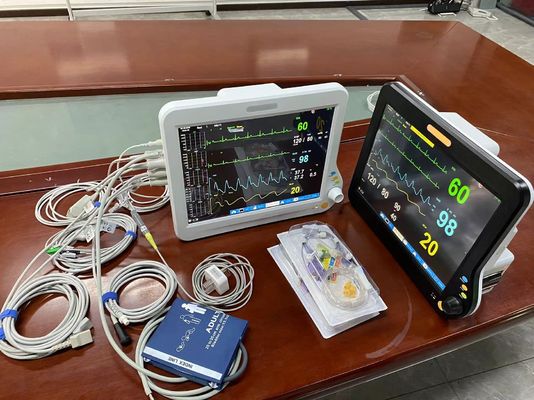

15" Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring bedside cardiac monitor HighAcuity T15
ICU cardiac monitor Quick Details:
This portable patient Monitor is used for monitoring, recording, and alarming of multiple physiological parameters of adults, pediatrics and neonates. You can view measurement trend graphs and alarming events to help you identify changes in the patient's physiological condition. The monitor can monitor ECG, RESP, TEMP, NIBP, SpO2 and PR. In addition, the monitor has options as CO2, 2-Ch IBP, C.O., Masimo SPO2, Suntech NBIP, printer and touch.
1. 15 inch TFT LCD screen, 6 standard parameters
2. 32-levels sound volume adjustment
3. 10-levels brightness adjustment
4. Maximum 168 hours graphic and tabular trends of all parameters
5. ST Segment/Arrhythmia Analysis, Tabular Trending/Graphical Trending, Drug Calculations, OXY CRG
6. Maximum 20 hours continual working time (optional)
7. Touch screen (optional)
8. Masimo SPO2 module (optional)
9. EtCO2 module (optional)
10. CO module (optional)
11. IoC module (optional)
12. 2IPB module (optional)
13. Suntech BP module (optional)
14. AG module (optional)
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Mainstream EtCO2 Sensor |
| Principle of Operation | Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no |
| Energy Emitting Device | High efficiency IR source |
| Energy Detecting Device | Frequency stable thermopile |
| CO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| CO2 Resolution | 0.1 mm Hg 0 to 49 mm Hg |
| CO2 Accuracy | ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS) |
| Dimensions | 50mm*22mm*36mm |
| Weight | < 40g |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
| Calibration | No routine user calibration required. An airway adapter zero is required |
| Data Output | CO2 gas concentration (mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. |
| Input Voltage | 5.0 VDC ±5% |
| Power Consumption | 1000mW |
| Warmup Time | 10 seconds |
| Response Time | 10mS |
( for more detailed technical data please refer to above PDF brochure)
ICU cardiac monitor Description:
The HighAcuity T15 ICU cardiac monitor portable patient monitor is part of Hung-Kee’s premier patient monitoring solution designed to enhance patient care and support timely and accurate clinical assessment across Emergency, Critical Care, and Operating Room environments. The HighAcuity T15offers an option a plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress. The HighAcuity T15 paired with the multi-gas module, manually identifies and measures the inspired and expired values of CO2, N2O and 5 anesthetic agents providing a compact, yet powerful OR monitoring solution. Integrated in each HighAcuity T15 patient monitor, 3 and 5- lead ECG, SpO2, NIBP, respiration, and temperature, offering a robust parameter platform to meet the needs of the ambulatory surgical care environment.
This cardiac patient monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V~,50/60Hz, adopts 15'' color TFT LCD displaying real-time date and waveform. It can synchronously display seven-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. Maximum 64 units portable patient monitor could be connected to the central monitoring system via wire network to form a network monitoring system.
1. Thinner and lighter in design, convenient and portable for users
2. Real-time S-T segment analysis, pacemaker detection
3. Various interfaces: standard screen, trend screen, oxy CRG screen, big front screen.
4. 3-level audio/visual alarms. Efficient resistance to interference of defibrillator and HF knife.
5. Up to 400 groups NIBP list, 168 hours, ECG waveform recall, 60 alarm event records recall,
6. 2-hour working capability. Wire central monitoring system applicable to ICU/CCU/OR
7. Optional Touch screen operation, more efficient and convenient
ICU cardiac monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
ICU cardiac monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for ICU cardiac monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: Can the accessories be exchanged around Hung-Kee devices?
A: Yes, it is possible to use the same accessories to exchange Hung-kee devices among the same series.
3. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
4.Q: Do you work on OEM and SKD project?
A: Yes, we have more than 14 years experience on OEM and SKD service, full assembling procedure will be provided, and detailed guidance of local assembling work will be offered.
5.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
6. Q: Can I order a sample?
A: Sure, delivery sample by global express in charge.
7. Q: How to proceed an order for portable patient monitor or other medical equipment?
A: 1st let us know your requirements or application.
2nd We quote according to your requirements or our suggestions.
3rd customer arrange payment for formal order.
4th We arrange the production.
8.Q:Are You A Manufacturer Or Trading Company?
A: We Are The Top 10 Manufacturer of ICU Equipment in China Since 2008.
9.Q:Do You Need Foreign Agent?
A: Surely Yes, We Warmly Welcome Foreign Clients To Be our Agent.
10.Q:How Can We Guarantee Quality?
A: Each Production Step Has Two Times Inspection, Engineers Simulating Actual Operation Of Each Machine Before Shipping.
11.Q:Why Should We Buy From You Rather than from other suppliers?
A: Producing Stable Quality And Affordable Products Is Our Purpose! Hung-Kee has been producing medical devices for more than 14 years, we have rich experience in production and maintenance.
12.Q: Are you trading company or manufacturer?
A: We are factory which has over 14 years' manufacturing experience.
13.Q: What's the MOQ?
A: 1 unit.
14.Q: How long is your delivery time?
A: 5 - 30 days after order confirmed. Based on the item and quantity.
15.Q: What is your terms of payment?
A: T/T, Western Union or PayPal; Trade terms: CIF
16.Q: Where's your general loading port?
A: Shenzhen or Hongkong port, as your demand.
17.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
18.Q:For tenders, whether you can provide all necessary documents.
A. Yes. We win a lot of tenders by providing complete documents and helped our customers.
