Product Details:
|
| Standard: | ECG, NIBP, SPO2, 2Temp | Warranty: | 24 Months |
|---|---|---|---|
| Power Supply: | Input 100~240V, 50/60Hz | OEM/SKD/ODM: | Accepted |
| Highlight: | 12.1 Inch Digital Vital Signs Monitor,Digital Vital Signs Monitor Multi Parameter,Cardiac digital vital signs machine |
||
Cardiac Patient monitor with Multi Parameter patient monitor modular patient monitor portable patient monitor

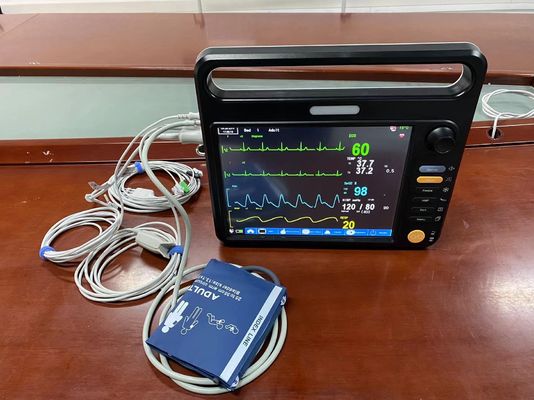

12.1” Portable high acuity Multi-parameter Patient Monitor ICU/OR monitoring cardiac monitor HighAcuity T12
Cardiac Patient Monitor Quick Details:
1. Multi-parameter patient monitor 12" TFT high resolution color display, enables maximum data visibility for the most critical parameters;
2. Real-time ST analysis, pacemaker detection, arrhythmia analysis;
3. 168 hours list trend recall,400NIBP data storage,
4. Various interfaces: A single guide, standard, large font, all leads
Hung-Kee Patient monitor Brochure 2022.01.pdf
Cardiac Patient Monitor Technical details:
Table EtCO2 Specification
| Transducer Type | Mainstream EtCO2 Sensor |
| Principle of Operation |
Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts. |
| Energy Emitting Device | High efficiency IR source |
| Energy Detecting Device | Frequency stable thermopile |
| CO2 Measurement Range | 0% to 20% (0 to 150mmHg) |
| CO2 Resolution |
0.1 mm Hg 0 to 49 mm Hg 0.2 mm Hg 50 to 150 mm Hg |
| CO2 Accuracy | ±2 mm Hg @ < 5.0% CO2 (at BTPS) < 10% of reading @ > 5.0%CO2(at BTPS) |
| Dimensions | 50mm*22mm*36mm |
| Weight | < 40g |
| Respiration Rate Range | 3 to 150 Breaths Per Minute (BPM) |
| Respiratory Rate Accuracy | 1% of reading ±1 breath |
| Calibration |
No routine user calibration required. An airway adapter zero is required when changing to a different style of airway adapter. |
| Data Interface | Highly configurable serial digital interface (TTL/RS232 Level) |
| Data Output | CO2 gas concentration (mmHg), End-tidal CO2, Inspired CO2, Respiratory Rate. |
| Input Voltage | 5.0 VDC ±5% |
| Power Consumption | 1000mW |
| Warmup Time | 10 seconds |
| Response Time | 10mS |
| Operating Temperature | 5℃ to 55℃ |
| Shipping/Storage Temperature Range |
-40℃ to 70℃ |
( for more detailed technical data please refer to above PDF brochure)
Cardiac Patient Monitor Description:
The HighAcuity T12 patient monitor offers an optional plug-and-play module structure for more advanced monitoring functions such as EtCO2, aiding clinicians to identify signs of patient deterioration due to respiratory distress, and other options like 2-ch IBP, C.O., Suntech BP and Masimo SPO2 modules.
1.7 inch high-precision color TFT display, continuous adjustable brightness.
2.Light weight and compact, very portable to carry during patient transportation.
3.Built in high capacity battery for long time operation.
4.Review trend data at any time for any patient.
5.3-level visual/audio alarms and alarm events can be stored and reviewed.
Cardiac Patient Monitor Standard Accessories:
5-lead ECG cable, SPO2 sensor, BP cuff, Temperature probe, Lithium battery, User manual, Power cord
Cardiac Patient Monitor Optional Accessories:
Aluminum trolley, wall mount stand
FAQ for Cardiac Patient Monitor:
1.Q: How long is the warranty time?
A: 24 Months
2. Q: When do you delivery?
A: Usually in 7-30 days depends on the order qty and available of some specific parts.
3.Q: Where is your company located?
A: Our company is located in Shenzhen city, very near from Hongkong(about one and half hours)
4.Q: What's the MOQ?
A: 1 unit.
